# Generative Hypergraph Clustering From Blockmodels to Modularity
### Phil Chodrow (UCLA) Nate Veldt (Cornell) Austin Benson (Cornell)
### SINM, June 23rd 2021

---

---

---

#### Generative hypergraph clustering: From blockmodels to modularities

.pull-left-third[.pink-bg[
.centered-image[![:scale 100%](img/nate.jpg)]
.embolden[Nate]  .embolden[Veldt]
.small[
  Math @ Cornell
]]]

.pull-left-third[.yellow-bg[
.centered-image[![:scale 100%](img/austin.jpg)]
.embolden[Austin]  .embolden[Benson]
.small[
  CS @ Cornell
]]]

.pull-left-third[.blue-bg[
.centered-image[![:scale 100%](img/phil.jpg)]
.embolden[Phil]  .embolden[Chodrow]
.small[
  Math @ UCLA
]]]

arXiv:2101.09611
Forthcoming in *Science Advances*

---

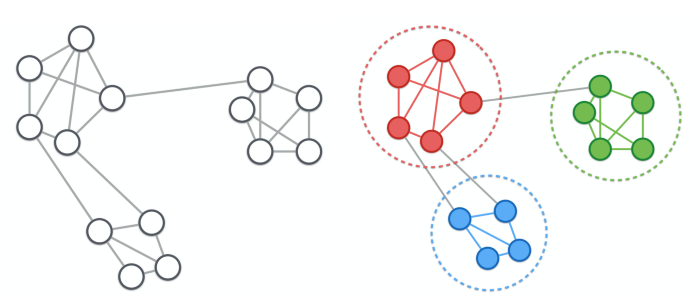

#### **Graph clustering** is a fundamental problem in network science.

.midi[
.pink-bg[
  .embolden[Problem]: find groups of "related" or "densely-interconnected" nodes.
]

Applications in social network analysis, healthcare, \*omics,...
]

.footnote[
*Image from Sebastian Dery, "Graph-based machine learning: part I" on [Insight Analytics](https://blog.insightdatascience.com/graph-based-machine-learning-6e2bd8926a0).*
]

---

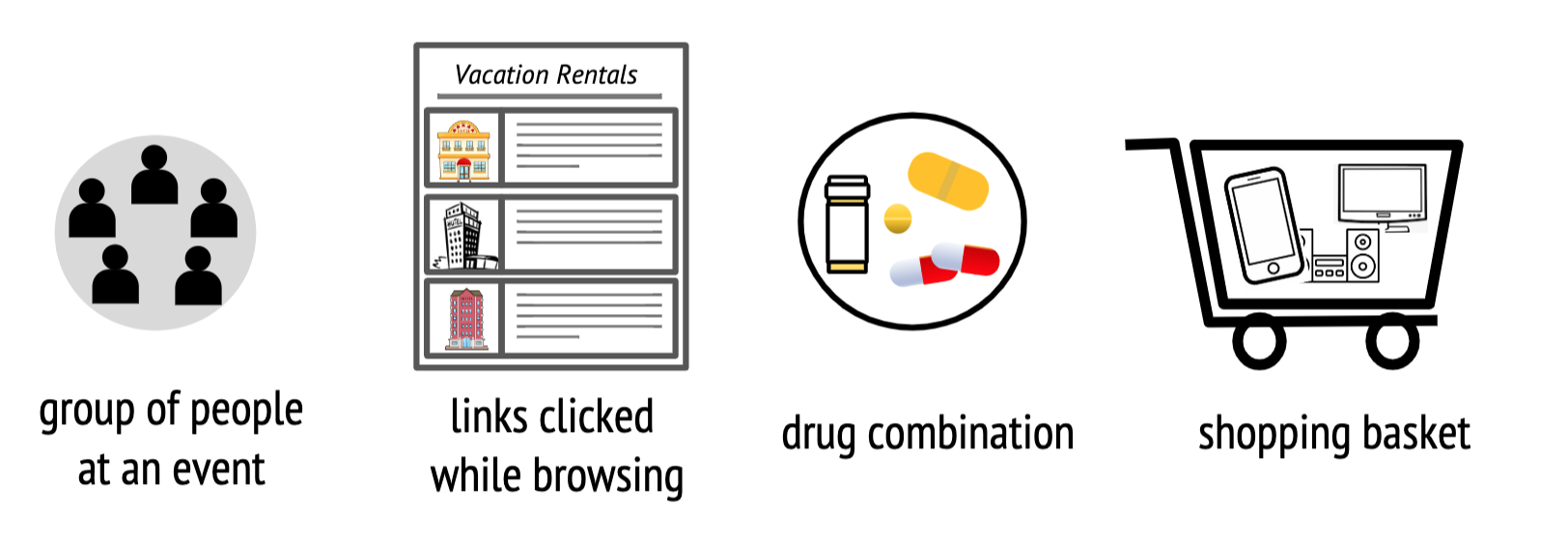

#### Many **real systems** have "higher-order" interactions that we can model with hypergraphs.

- **Nodes**: individual people/links/compounds/items.
- **Hyperedges**: events/sessions/drugs/shopping trips.

---

class:

#### **Key messages** for today.

.pink-bg[
A generative approach to hypergraph modularity can lead to .embolden[interpretable objectives] and .embolden[fast algorithms].
]
.midi[ ]
.yellow-bg[
.embolden[Hypergraph] algorithms can succeed where .embolden[graph] algorithms necessarily fail.
]
.midi[ ]
.blue-bg[
Performance depends on .embolden[matching the structural assumptions] of algorithms to data.
]

---

#### We propose a heterogeneous **hypergraph degree-corrected stochastic blockmodel**.

.midi[
.pink-bg[
`$$a_R \equiv \text{# of edges on tuple }R \sim \mathrm{Poisson}\left(\Omega(\mathbf{z}_R)\prod_{i \in R}\theta_i\right)$$`
]]

- `$\mathbf{z}$` is the vector of node labels (clusters).
- `$\{\theta_i\}$` are *degree* parameters.
- `$\Omega$` is the *affinity function* that governs connections between different groups.
- .embolden[Assumption]: `$\Omega(\mathbf{z}_R) = \Omega(\mathbf{p})$`, where `$\mathbf{p}$` is the partition vector of `$\mathbf{z}_R$`  `$\implies$` all groups are statistically identical.

.footnote[
Bernoulli variant proposed by Ke et al., "Community detection for hypergraph networks via regularized tensor power iteration." *arxiv:*:1909.06503, 2019
]

---

#### The parameters ** `$\theta$` ** and ** `$\Omega$` ** are easy to approximate.

Approximate maximum-likelihood estimates:

.pink-bg[
$$
`\begin{aligned}
\hat{\theta}_i &\approx\text{degree of node }i \equiv d_i \\
\hat{\Omega}(\mathbf{p}) &\approx \frac{\text{# of hyperedges with partition } \mathbf{p}}{\sum_{\mathbf{y}: \mathbf{p}(\mathbf{y}) = \mathbf{p}}\prod_{y \in \mathbf{y}}y}\;.
\end{aligned}`
$$
]

*These approximations are exact when all clusters have the same sum-of-degrees*.

.footnote[
Zhang + Peixoto, "Statistical inference of assortative community structures." *PRR*, 2020]
---

#### Optimization over `$\mathbf{z}$` leads to a **modularity-type objective.**

.pink-bg[
$$
`\begin{aligned}
Q(\mathbf{z}, \Omega) &\equiv \sum_{\mathbf{p}}[ \Omega(\mathbf{p}) \textbf{cut}_\mathbf{p}(\mathbf{z}) +  \log \Omega(\mathbf{p}) \textbf{vol}_\mathbf{p}(\mathbf{z})] \\
&\approx \mathcal{L}(\mathbf{z}, \Omega, \mathbf{d}) + \text{constants w.r.t. } \mathbf{z}
\end{aligned}`
$$
]

$$
`\begin{aligned}
  \textbf{cut}_\mathbf{p}(\mathbf{z}) &\equiv \text{# of hyperedges with partition } \mathbf{p}\\
  \textbf{vol}_\mathbf{p}(\mathbf{z}) &\equiv \sum_{\mathbf{y}: \mathbf{p}(y) = \mathbf{p}} \prod_{y \in \mathbf{y}} \textbf{vol}(y)
\end{aligned}`
$$

We call `$Q(\mathbf{z}, \Omega)$` a **symmetric hypergraph modularity.**

---

#### The **All-Or-Nothing** modularity is an important special case.

Consider an edge `$e$` of `$k$` nodes. Suppose:
`$$\Omega(\mathbf{z}_e) = \begin{cases}
  \omega_{k1} &\quad e \text{ has homogeneous labels} \\
  \omega_{k0} &\quad \text{otherwise}\;.
\end{cases}$$`

.midi[
.gray-bg[
$$
Q = \sum_k \color{#0F4C81}{\beta_k} \left[\text{# homogeneous }k\text{-edges} - \color{#ec7a39}{\gamma_k}\sum_j \textbf{vol}(j)^k\right]
$$
]]

Derivation follows Newman, "Equivalence between modularity optimization and maximum likelihood methods for community detection." *PRE*, 2016

Generalizes Kamiński et al., "Clustering via hypergraph modularity." *PLoS ONE*, 2019]

---

#### These parameters are **interpretable** and can be **estimated from data.**

.midi[
.gray-bg[
$$
Q = \sum_k \color{#0F4C81}{\beta_k} \left[\text{# homogeneous }k\text{-edges} - \color{#ec7a39}{\gamma_k}\sum_j \textbf{vol}(j)^k\right]
$$
]]

`$\color{#0F4C81}{\beta_k} \equiv \log \omega_{k1} - \log \omega_{k0}$`.
- .blue[**Size parameters**] control importance of edge sizes.

`$\color{#ec7a39}{\gamma_k} \equiv \frac{1}{\beta_k}(\omega_{k1} - \omega_{k0})$`.
- **.orange[Resolution parameters]** control number of clusters

---

#### Nate wrote efficient **hypergraph maximum-likelihood Louvain** (HMLL).

.pink-bg[
1. All nodes start in their own cluster.
2. Greedily agglomerate nodes to maximize modularity.
3. Then, greedily agglomerate entire .embolden[clusters] of nodes.
4. Estimate parameters `$\Omega$` and `$\{\theta_i\}$`.
5. Repeat!
]

Works for general assortative `$\Omega$`, **highly scalable** for All-or-Nothing `$\Omega$` due to algebraic simplifications.

.footnote[Based on Blondel et al. "Fast unfolding of communities in large networks." *J. Stat. Mech.*, 2008]

---

.midi[

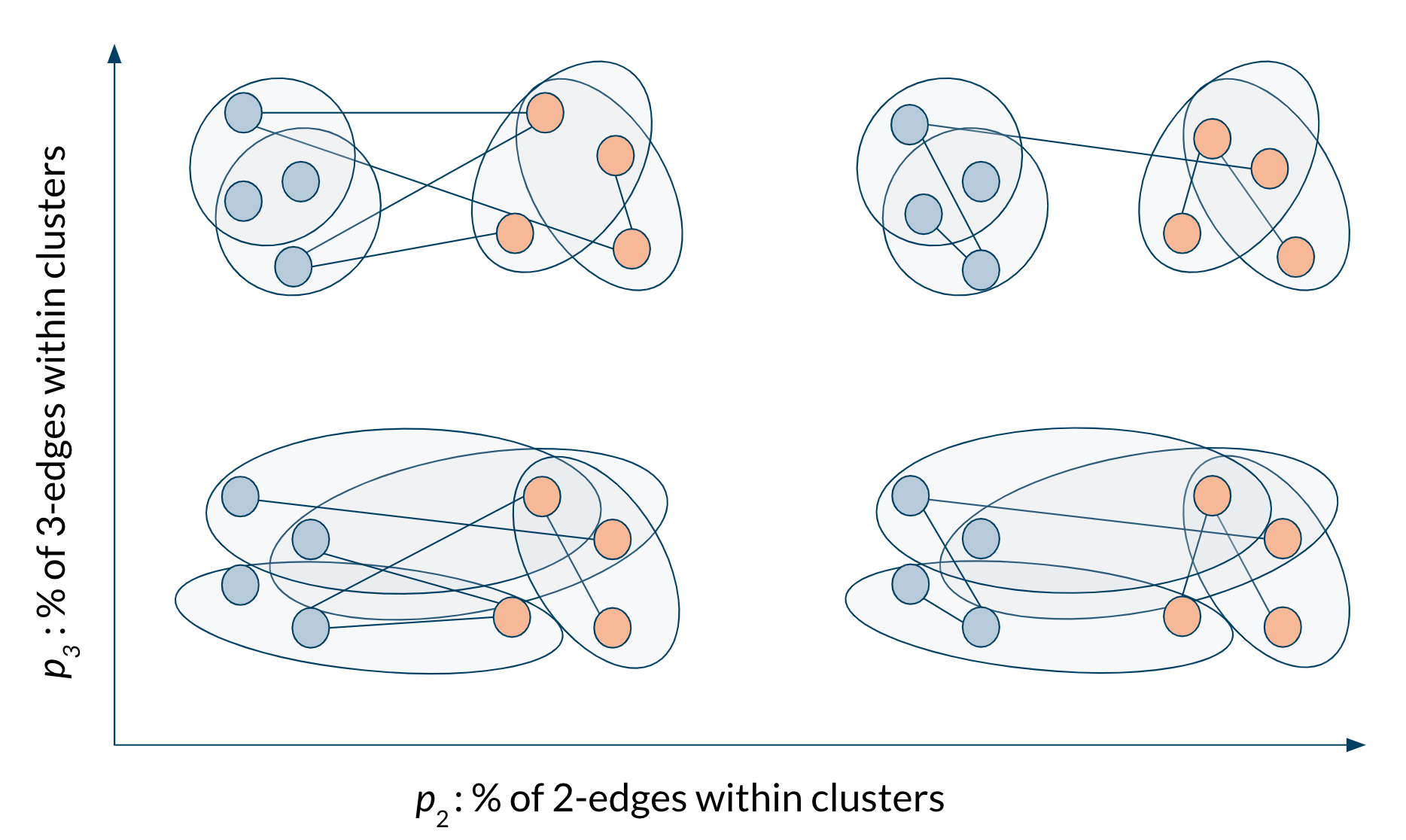

#### **Detectability thresholds**: hypergraph methods can succeed where graph methods fail.
]

---

.footnote[See Abbe, "Community Detection and Stochastic Block Models: Recent Developments." *JMLR*, 2018 for a review in graphs.]

---

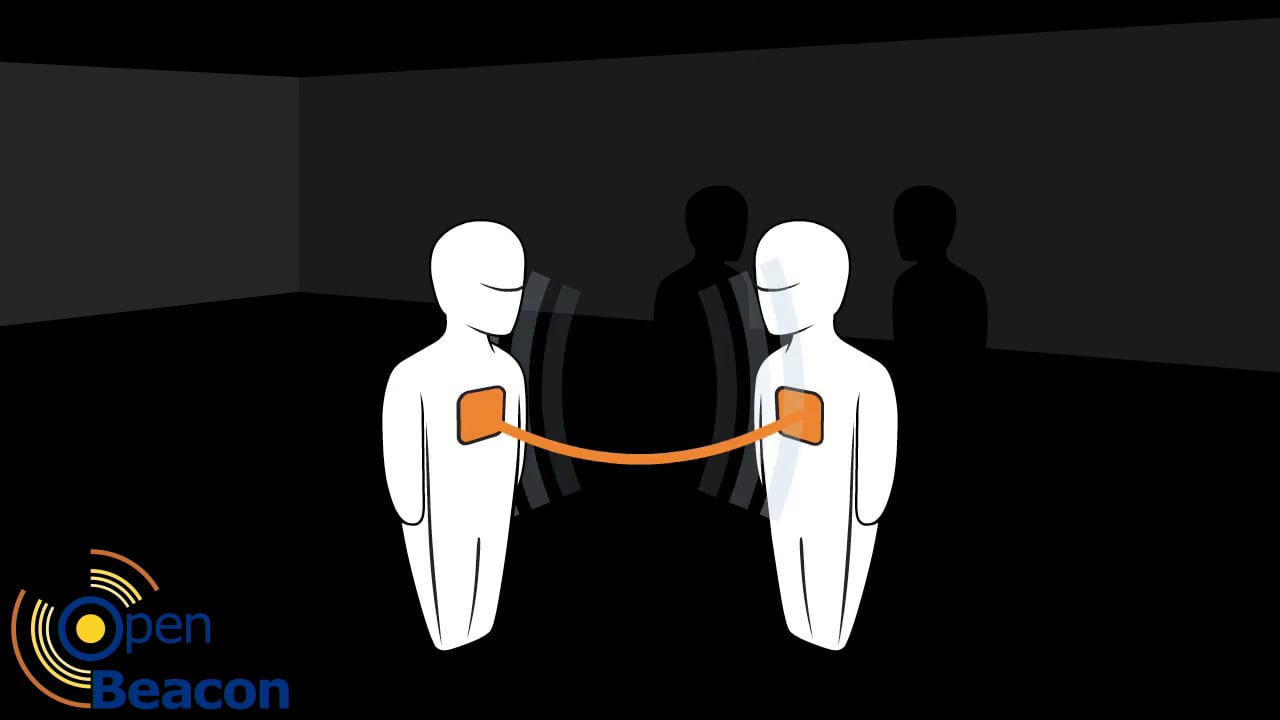

#### We compared graph and hypergraph methods on **school contact hypergraphs**.

.footnote[
Stehlé et al. "High-resolution measurements of face-to-face contact patterns in a primary school." *PLoS ONE*, 2011

Mastrandrea et al. "Contact patterns in a high school: a comparison between data collected using wearable sensors, contact diaries and friendship surveys." *PLoS ONE*, 2015
]

---

---

---

#### Performance of algorithm is closely tied to higher-order **structure of data**.

*BIC of data under two choices of `$\Omega$`, lower is better.*

.midi[
|                             |  AON `$\Omega$` | Pairwise `$\Omega$`
|-----------------------------|-----------:|-----------:|-------------:|
| `contact-primary-school`*    | **2.2003** | 2.2003     | `$\times 10^5$`|
| `contact-high-school`*       | **4.1954**  | 4.1954     | `$\times 10^5$`|
| `trivago-clicks`*            | **1.6854** | 1.6960     | `$\times 10^8$`|
| `walmart-purchases`         | 1.0763     | **1.0758** | `$\times 10^6$`|
| `house-bills`               | 9.9719     | **9.9670** | `$\times 10^6$`|
| `senate-bills`*              | **3.1925** | 3.1925     | `$\times 10^6$`|
]

---

#### What we learned

#### There's still a **lot more to do**...

1. Alternative **inference frameworks** for DCHSBM:
  - Bayesian Monte Carlo.
  - Belief propagation.
  - Alternative greedy heuristics.
2. **Faster algorithms** for general affinity functions `$\Omega$`.
3. Mathematical understanding of the **information-theoretic limits** of hypergraph inference frameworks.
4. [Insert **your cool idea** here].

---

## The Preprint

Forthcoming in *Science Advances*.

---

#### Thanks!

.pull-left-third[.pink-bg[
.centered-image[![:scale 100%](img/nate.jpg)]
.embolden[Nate]  .embolden[Veldt]
.small[
  Math @ Cornell
]]]

.pull-left-third[.yellow-bg[
.centered-image[![:scale 100%](img/austin.jpg)]
.embolden[Austin]  .embolden[Benson]
.small[
  CS @ Cornell
]]]

.pull-left-third[.blue-bg[
.centered-image[![:scale 100%](img/phil.jpg)]
.embolden[Phil]  .embolden[Chodrow]
.small[
  Math @ UCLA
]]]

# Supplementary Slides

---

#### There are **other approaches** to modularity in hypergraphs!

- Defines modularity by comparison to a null random hypergraph.
- We derive this one as a special case, and add resolution parameters.

**Kumar et al.** "Hypergraph clustering by iteratively reweighted modularity maximization." *Applied Network Science*, (2020)

- Combines graph modularity with an adaptive penalty for imbalanced hyperedge splits.
- Seems to work well! Not directly connected to a generative model.
]

---

#### We can retrieve correlated partitions on synthetic hypergraphs of **1M nodes**.

Hypergraph Louvain is roughly as fast as dyadic projection + graph Louvain.

---

#### **Parameter estimates** help us understand how AON HMLL succeeds in this case.

---

#### More data!

`trivago-clicks`
.midi[
- Edges are online browsing sessions on `trivago.com`, nodes are hotels clicked on by users.
]

`walmart-trips`
.midi[
- Edges are shopping trips, nodes are items purchased in the same trip.
]

`house-bills` + `senate-bills`:
.midi[
- Edges are bills in the 103-117th U.S. Congresses, nodes are legislators.
]

---

#### More data!

| | `$n$` | `$m$` | `$<d>$` | `$<k>$` |
|---------------------|-----:|-----:|------:|----:|
| `trivago-clicks` | 171K | 221K | 4.0 | 4.2 |
| `walmart-purchases` | 89K | 66K | 5.1 | 6.7 |
| `house-bills` | 1K | 43K | 274.0 | 9.5 |
| `senate-bills` | 0.3K | 20K | 406.3 | 7.3 |

`trivago` and `walmart` have lots of singletons, so we took progressively denser cores and studied the behavior.

.footnote[Data on Austin's website! [https://www.cs.cornell.edu/~arb/data/](https://www.cs.cornell.edu/~arb/data/)]

---
